Description
The Mix Back is a flexible and affordable 16 x 12 x 2 x 2 monitor mixer. With two stereo and twelve mono outputs, it’s a perfect companion to our Hear Back personal monitorsystem. The mixer is equally at home as a standalone monitor mixer.A talk back mic preamp permits talking to anyor all master outputs and the intercom output.The optional 16 button remote connects usinga standard CAT5e cable.
Input Channel Features
- 16 quality Mic/Line inputs withpassive XLR split
- Pin 1 lift and Mic phantom power switches
- Channel inserts
- Signal/Clip LED indicator
- 100 Hz high-pass filter
- Gain control
- 4-band EQ with separate controls for sweepand cut/boost on mid bands
- Two stereo level and pan controls (ST1 and ST2)
- Twelve mono level controls (1-12)
- Switch selectable effects 1-2 sends

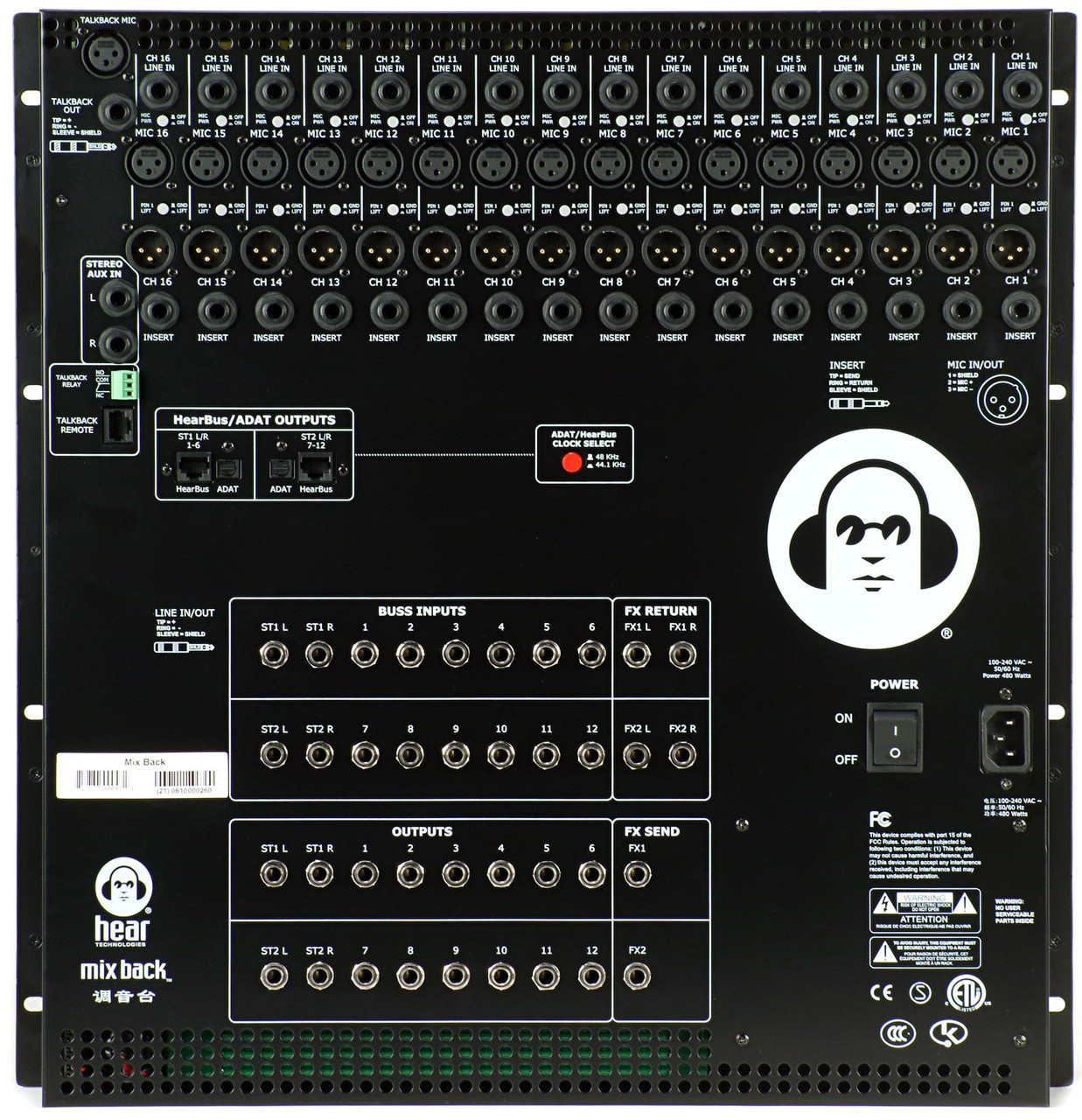

Master Features
- 2 stereo and 12 mono TRS outputs
- Switch selectable meter/headphone monitoring
- 2 stereo TRS balanced effect returns
- Switch assignable FX1/FX2 returns to the 12 mono masters
- Stereo Aux return with level controls to both stereo busses – great for FOH mix or the studio “two mix”
- Buss inputs permit stacking of multiple mixers
- Talk back mic preamp assignable to stereo masters 1 and 2, mono outputs 1-12, and the balanced Intercom/slate output
- Relay contact when the talk back intercom switch is pressed
- 16 button talkback remote connects using standardCAT5e cable
- 16 channels of ADAT andHearBus output
Other Features
- Universal internationallyapproved internal power supply
- 11 RU chassis
- All analog inputs and outputs are balanced
Mix Back Remote (MBR)
With the Remote Control, the talkback mic preamp is assignable to stereo masters 1 and 2, mono outputs 1 – 12, and the balanced intercom/slate output.Connects up to 500 feet with a standard CAT5e cable. FOR USE WITH MIX BACK (MB) ONLY.
